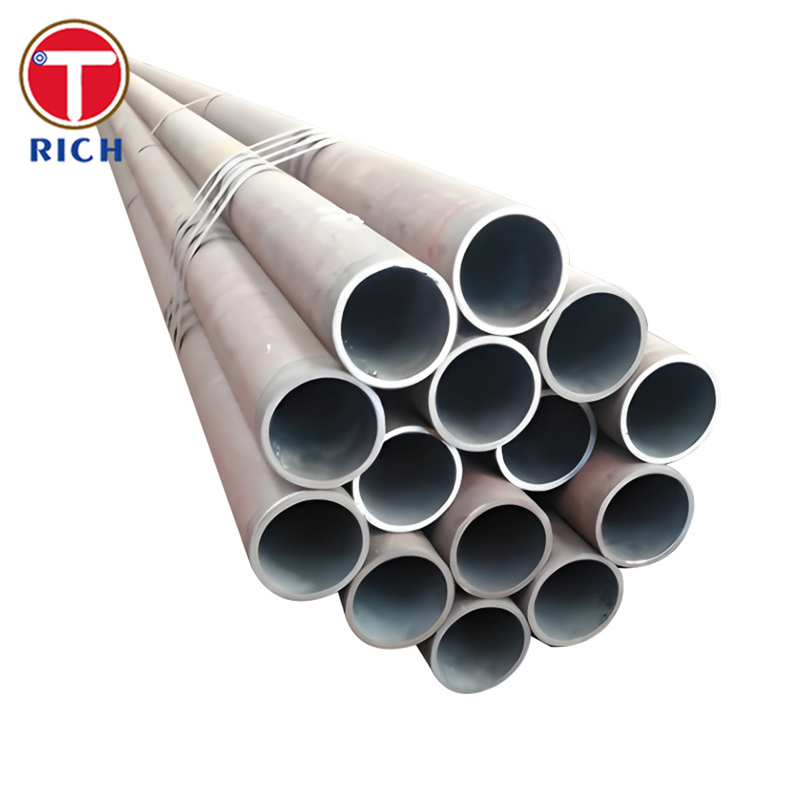

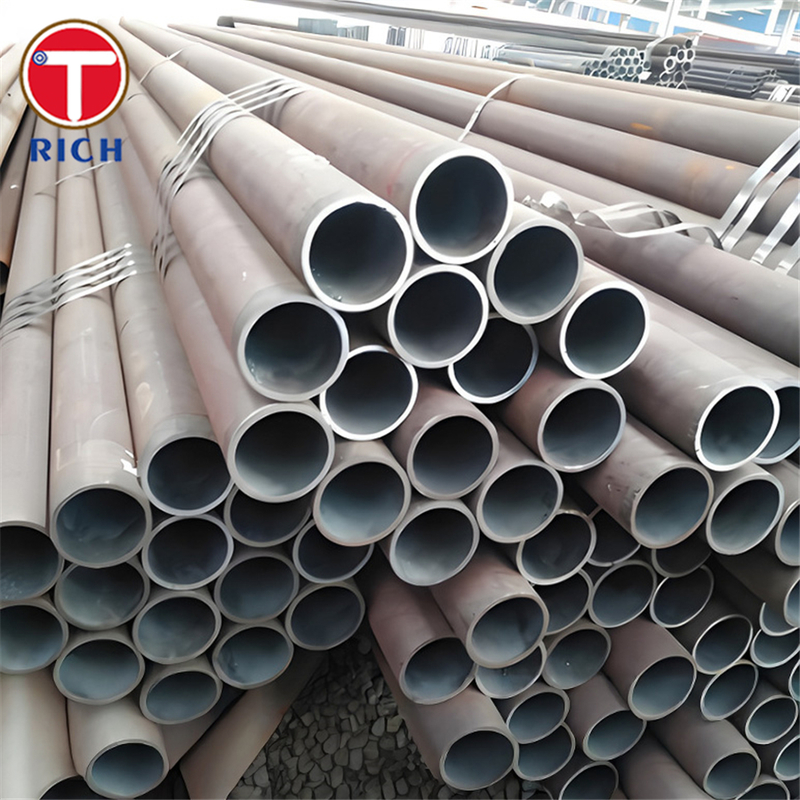

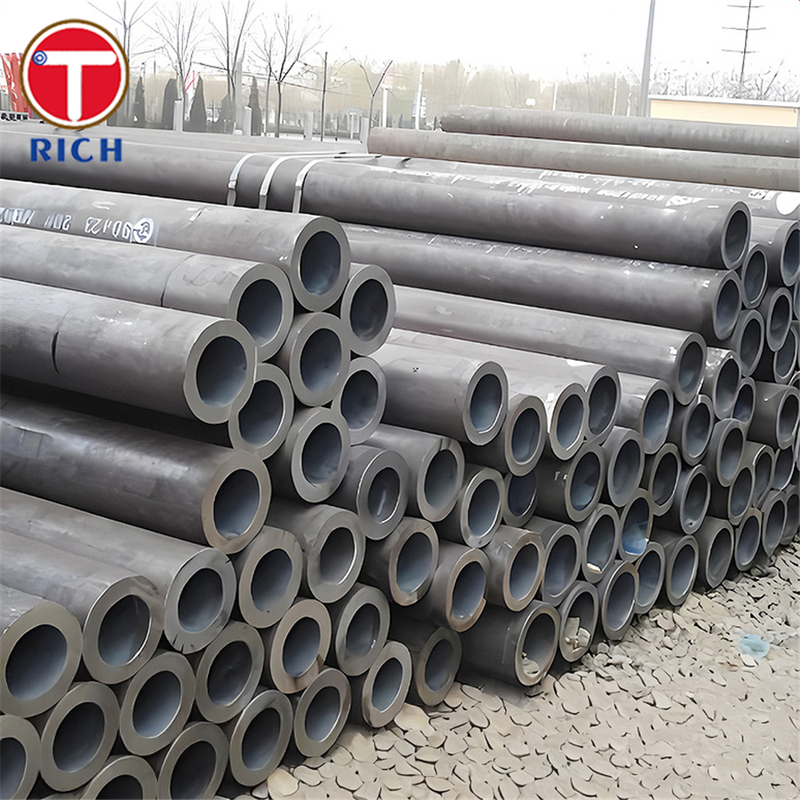

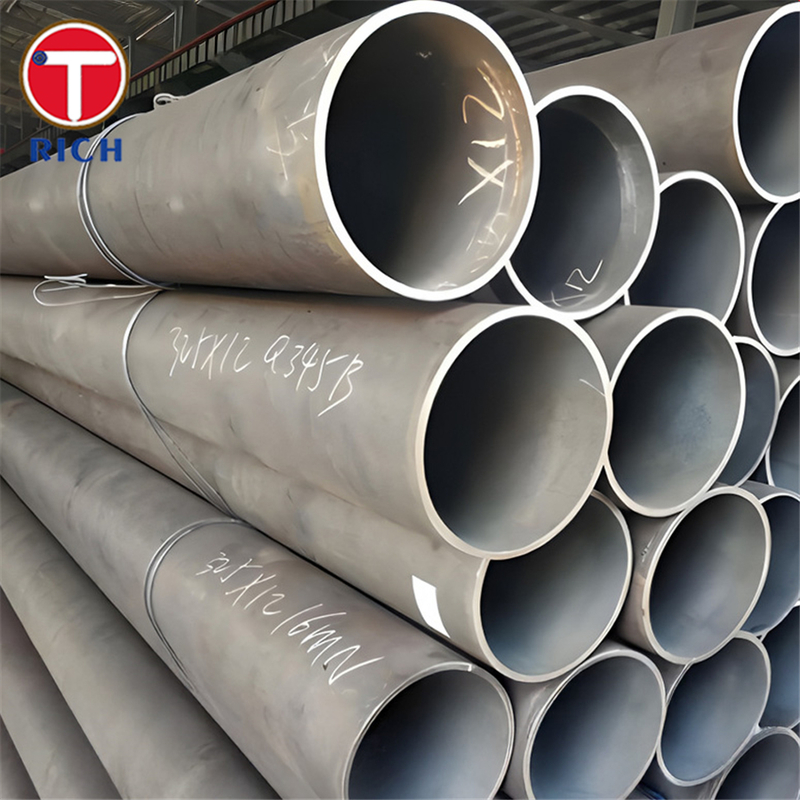

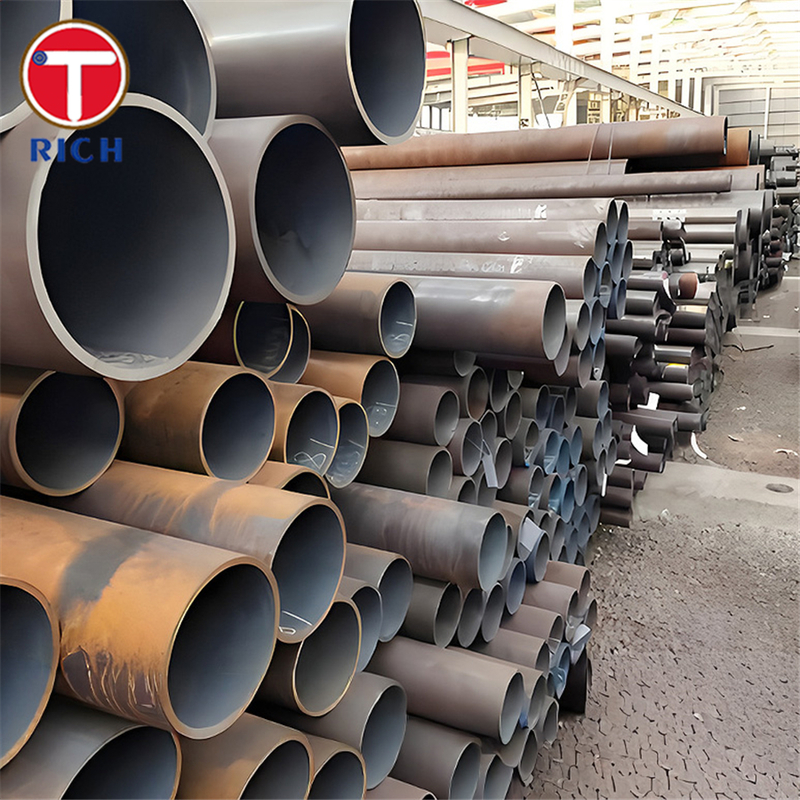

BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering

BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering

BS970 seamless steel tube

080M15 steel tube for mechanical engineering

seamless steel tube 8-630mm OD

Τόπος καταγωγής:

Zhejiang/Κίνα

Μάρκα:

TORICH

Πιστοποίηση:

ISO9001 ISO 14001 TS16949

Αριθμό μοντέλου:

δομικά σωλήνες από χάλυβα

Επικοινωνήστε μαζί μας.
Ζητήστε ένα απόσπασμα
Λεπτομέρειες προιόντος
Εφαρμογή:
Μηχανολόγος μηχανικός
Εξωτερική διάμετρο (στρογγυλό):
8 - 630 mm
Πάχος:
2 - 100 mm
Πρότυπο:
ΑΣTM,DIN,API,GB,JIS
Βαθμός:
080M15 070M20 080M30 635M15 637M17
Μήκος:
5.8-12m, ή όπως απαιτείται., 5.8m, 5-12m ή ως απαίτηση σας, 12m
Τεχνική:
Χάλυβα, χάλυβες, χάλυβες, χάλυβες, χάλυβες, χάλυβες, χάλυβες
Σχήμα:
Στρογγυλό σχήμα, τετράγωνο, ορθογώνιο.
Επισημαίνω:

BS970 seamless steel tube

,

080M15 steel tube for mechanical engineering

,

seamless steel tube 8-630mm OD

Όροι πληρωμής & ναυτιλίας
Ποσότητα παραγγελίας min
1ο
Τιμή
800-1200 USD/Ton
Συσκευασία λεπτομέρειες
Σε δέσμες ή σε ξύλινα κουτιά.
Χρόνος παράδοσης
20-30 ημέρες με προϊόντα
Όροι πληρωμής
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς
60000 τόνοι/τόνοι ετησίως
Περιγραφή του προϊόντος

BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 0

BS970 Structural Steel Tubing – Seamless Carbon Steel Tubes for Mechanical Engineering

Material

BS970 structural steel tubing is manufactured from seamless carbon steel, providing excellent machinability, reliable strength, and uniform performance. These steels are widely used in mechanical engineering applications due to their balanced combination of toughness, ductility, and hardness.

Specifications

  • Product: Seamless Carbon Steel Tube

  • Grades: BS970 080M15, 070M20, 080M30, 635M15, 637M17

  • Form: Tubing / Hollow sections

  • Application: Mechanical engineering, precision components, structural use

Chemical Composition

Grade C (%) Mn (%) Si (%) P (%) max S (%) max Cr (%) Mo (%) Ni (%)
080M15 0.13–0.18 0.70–1.00 0.10–0.35 0.05 0.05
070M20 0.17–0.23 0.30–0.60 0.10–0.35 0.05 0.05
080M30 0.25–0.35 0.50–0.80 0.10–0.35 0.05 0.05
635M15 0.13–0.18 0.60–0.90 0.10–0.35 0.05 0.05 0.90–1.20
637M17 0.15–0.20 0.50–0.80 0.10–0.35 0.05 0.05 0.90–1.20 0.20–0.30

Mechanical Properties

Grade Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Hardness (HB) Impact (J)
080M15 430–580 250 min 23–25 130–170 Good
070M20 440–600 280 min 22–25 140–180 Good
080M30 500–650 300 min 20–23 150–190 Good
635M15 550–700 320 min 20–22 160–200 Good
637M17 600–750 350 min 18–22 170–210 Good

Key Features

  • Excellent machinability for mechanical processing

  • Balanced strength and toughness

  • Good weldability and formability

  • Available in seamless tubing for structural integrity

  • Suitable for precision parts and load-bearing applications

Standards

  • BS970: British Standard for wrought steels

  • ASTM A519: Seamless carbon and alloy steel mechanical tubing

  • EN 10294 / EN 10297: Seamless steel tubes for mechanical and engineering applications

  • JIS G4051: Japanese standard for carbon steels for machine structural use

  • GB/T 8162: Seamless steel tubes for structural purposes

Applications

BS970 seamless structural steel tubes are widely used in mechanical engineering and precision equipment manufacturing. Typical applications include:

  • Automotive industry: Axles, drive shafts, steering components

  • Machinery: Gear parts, spindles, shafts, bushings

  • Construction & structures: Load-bearing frameworks, welded assemblies

  • Energy & power: Mechanical components in turbines and equipment

  • General engineering: Fasteners, pins, precision mechanical tools


BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 1

BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 2     BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 3


BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 4     BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 5


BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 6

BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 7

BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 8

BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 9

BS970 080M15 Seamless Steel Tube 8-630mm OD for Mechanical Engineering 10

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.


Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,

it is according to quantity.


Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
