Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust

Inconel 625 nickel alloy tube

Auto exhaust nickel alloy tube

Precision steel tube with warranty

Τόπος καταγωγής:

Zhejiang/Κίνα

Μάρκα:

TORICH

Πιστοποίηση:

ISO9001 ISO 14001 TS16949

Αριθμό μοντέλου:

Γυαλισμένος σωλήνας νικελίου

Επικοινωνήστε μαζί μας.
Ζητήστε ένα απόσπασμα
Λεπτομέρειες προιόντος
Εφαρμογή:
Σωλήνας δομής, υδραυλικός σωλήνας, κατασκευή, σωλήνας υγρού, σωλήνας λαδιού
Εξωτερική διάμετρο (στρογγυλό):
30 - 426 mm
Πάχος:
2 - 50 mm, 0.1mm -60mm, 0.3-3.5mm, 1 - 8 mm, 0.5 - 20 mm
Μήκος:
6M ή ως απαίτηση,Όπως απαιτεί ο πελάτης,
Πρότυπο:
ASTM, DIN, GB, JIS, API
Τεχνική:
Κρύο τραβηγμένο, ζεστό έλασης, κρύο έλασης, erw, ζεστό έλασης/κρύο τραβηγμένο
Βαθμός:
Ακατέργαστο 625
Σχήμα τμήματος:
Στρογγυλό, ορθογώνιο
Επισημαίνω:

Inconel 625 nickel alloy tube

,

Auto exhaust nickel alloy tube

,

Precision steel tube with warranty

Όροι πληρωμής & ναυτιλίας
Ποσότητα παραγγελίας min
1ο
Τιμή
900-1200 USD/Ton
Συσκευασία λεπτομέρειες
Σε δέσμες ή σε ξύλινα κουτιά.
Χρόνος παράδοσης
20-30 ημέρες με προϊόντα
Όροι πληρωμής
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς
60000 τόνοι/τόνοι ετησίως
Περιγραφή του προϊόντος

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 0

Polished Nickel Pipe – Inconel 625 Nickel-Based Alloy Tube for Automobile Exhaust

Material Overview

This product is a polished nickel pipe made of Inconel 625, a nickel-based superalloy renowned for its exceptional strength, corrosion resistance, and high-temperature durability, making it ideal for automobile exhaust systems.

1. Composition

Element Content (wt%)
Nickel (Ni) ≥ 58 %
Chromium (Cr) 20–23 %
Molybdenum (Mo) 8–10 %
Iron (Fe) ≤ 5 %
Niobium + Tantalum (Nb + Ta) 3.15–4.15 %
Cobalt (Co) ≤ 1 %
Manganese (Mn) ≤ 0.5 %
Silicon (Si) ≤ 0.5 %
Aluminum (Al) ≤ 0.4 %
Titanium (Ti) ≤ 0.4 %
Carbon (C) ≤ 0.1 %
Phosphorus (P) ≤ 0.015 %
Sulfur (S) ≤ 0.015 %

2. Mechanical Properties


Alloy / Variant Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
Inconel 625 (general) ≈ 930 MPa ≈ 517 MPa ≈ 42.5 %
VDM Alloy 625 (annealed) —
Altemp 625™ ≥ 827 MPa ≥ 414 MPa 45 %
Inconel 625 (ASM data) 880 MPa —
Inconel 625LCF™ 769.5 MPa 319 MPa 63 %

3. Key Features

  • Solid solution strengthened, with Mo and Nb imparting high strength—no precipitation hardening required.

  • High fatigue, creep, and thermal fatigue strength over a wide temperature range, from cryogenic up to ~982 °C (1800 °F).

  • Excellent resistance to oxidation, carburization, pitting, crevice corrosion, and nearly immune to chloride stress-corrosion cracking.

  • Readily weldable and fabricable with standard processes; excellent machinability in annealed condition.

4. Applicable Standards

Common specifications and standards for Inconel 625 include:

  • ASTM / ASME: B444/B705 (pipe/tube), B704 (welded tube), B443/B446 (plate/bar)

  • International: EN 2.4856, ISO 6207, AMS 5599/5666/5837/5869, ASME SB443/446

In pipe manufacturing contexts (for polished or bright finishes):

  • ASTM B167 / B444, ASME SB167 / SB444, ASTM B829, AMS 5581

5. Applications in Automobile Exhaust Systems

General Application Domains:

  • Automotive & Aerospace: Exhaust ducts, turbocharger systems, engine components, thrust-reversers

  • Marine / Chemical / Energy: Flare stacks, turbine ducting, chemical handling, nuclear components

Automobile Exhaust-Specific Uses:

  • Exhaust headers/manifolds: Excellent at withstanding cyclic thermal loads and corrosive gas exposure.

  • Turbocharger housings & downstream ducting: Benefit from oxidation resistance and high-temperature strength.

  • Downstream exhaust piping: Polished Inconel 625 resists road corrosion (salt and chemical exposure) and maintains structural integrity under thermal cycling.

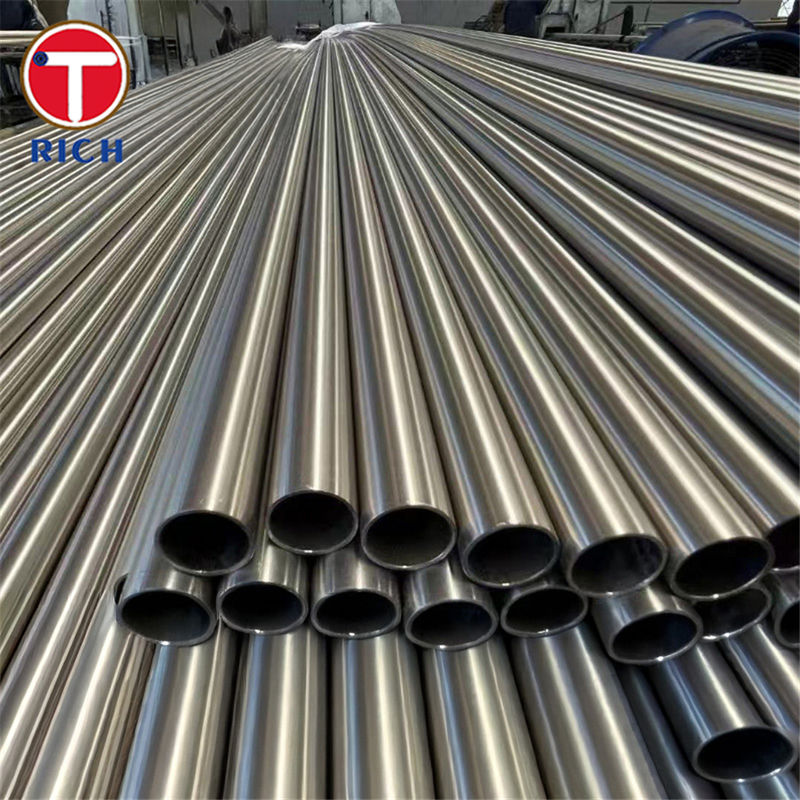

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 1

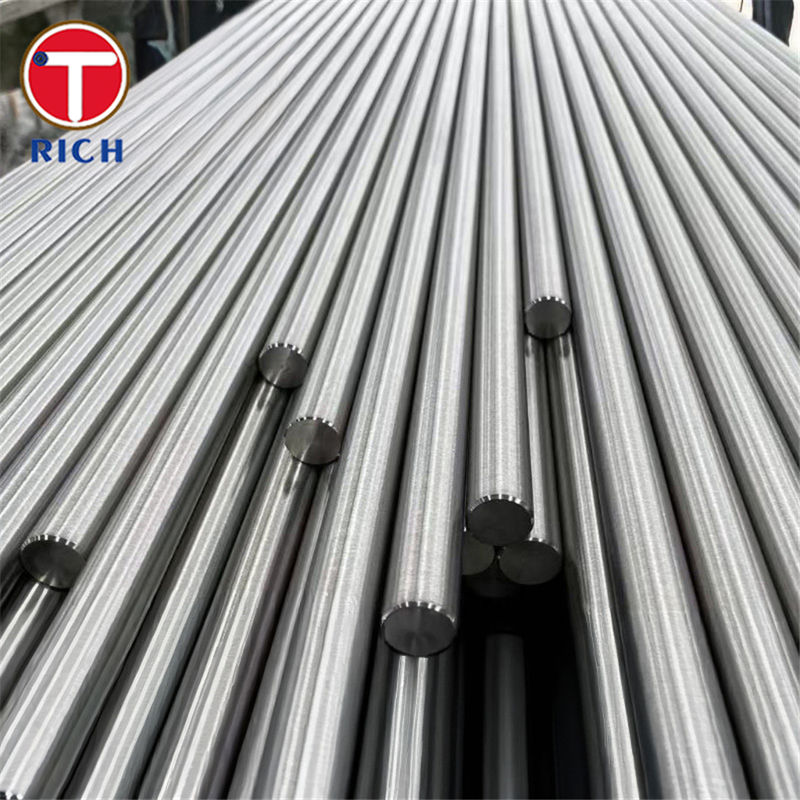

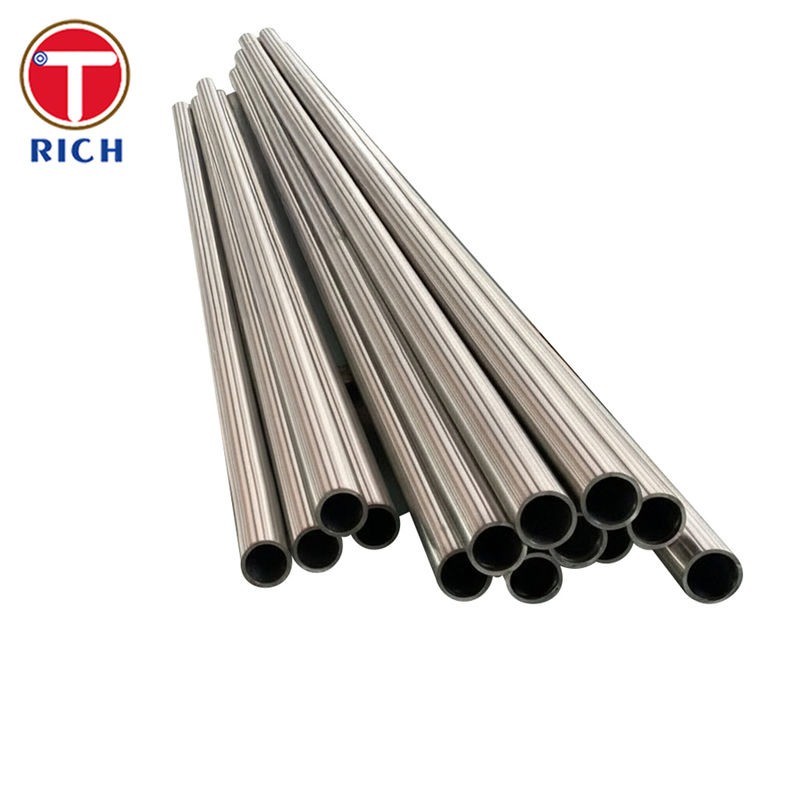

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 2     Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 3

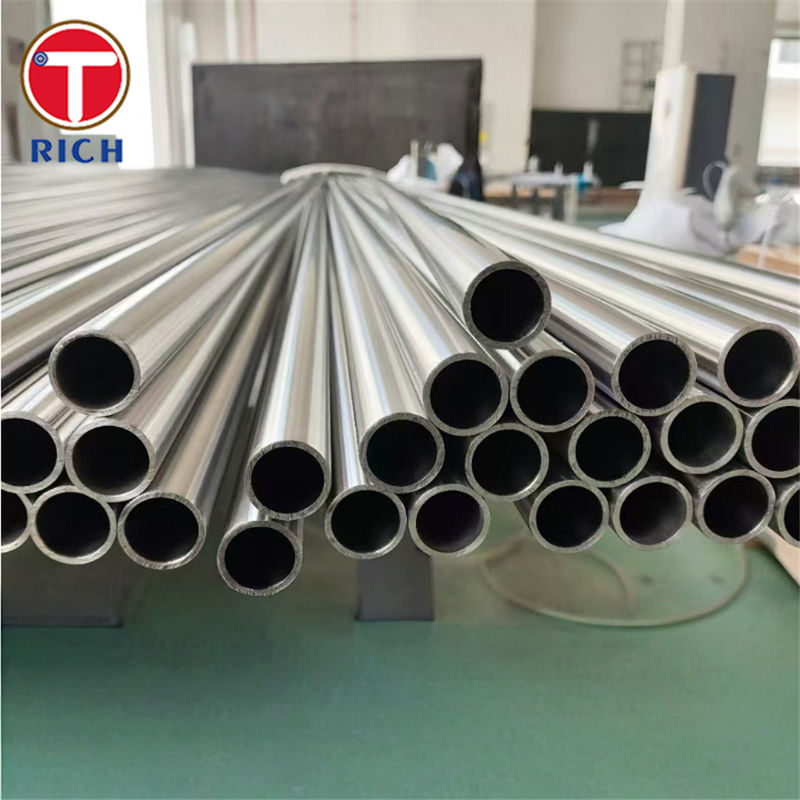

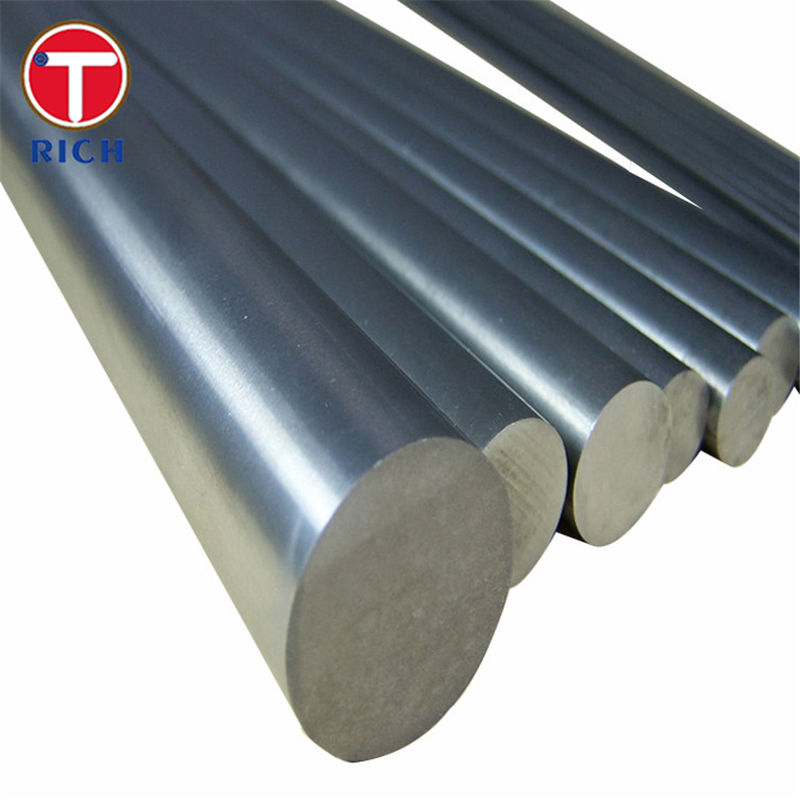

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 4     Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 5


Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 6

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 7

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 8

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 9

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 10

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.


Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,

it is according to quantity.


Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
